▲ Highly visible display with backlit LCD
▲ Conform to the key design of ergonomics
▲ Five key protection modes:KP-1~5
▲ EEPROM(overwirtes:100,000 times min.)
▲ 12VDC external supply power
▲ Applied to connect PC/HMI/PLC/DCS
▲ Free PC software “TC-SOFT”
▲ Support Modbus Protocol
▲ Support RS-232/485/422



Type TC-Pro482 Series TC-Pro483 Series
Classification Digital Timer/Counter
/Tachometer
Digital Timer/Counter
/Tachometer
Supported
configurations
Timer, Dual Timer,
2-Stage Timer,1-stage
counter, 2-stage counter,
total counter, batch
counter, dual counter,
and tachometer
Timer, Dual Timer,
2-Stage Timer,1-stage
counter, 2-stage counter,
total counter, batch
counter, dual counter,twin counter,Multi mode
and tachometer
Operating voltage range 100~240VAC(50/60HZ), 24VDC

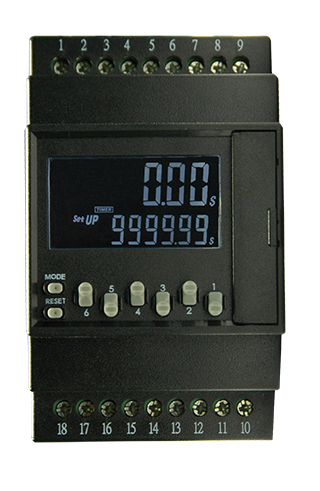

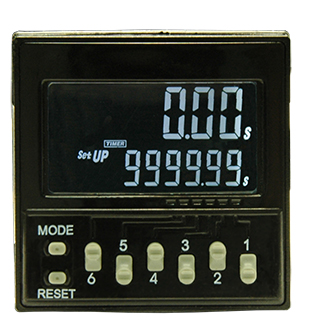

Installation DIN rail or Flush mounting
Max. counter speed 30HZ or 5KHZ (10KHZ
for Tachometer)
30HZ/1KHZ/5KHZ (10KHZ
for Tachometer)
Timer mode Elapsed time (UP),
Remaining time (down)
(selectable)
Elapsed time (UP),
Remaining time (down)
(selectable)
Input method No-voltage input : ON impedance : 1kΩ max.
Voltage Input : High(logic) level : 4.5~30 VDC Low(logic) level :0~2 VDC( Input
resistance: approx. 4.7 kΩ)
Interface RS-232/485/422
Control output Relay contact output: 5A at 250 VAC
Transistor output: NPN open collector, max. 100mA at 30 VDC
①2:482 3:483 ② S:Standard C:Communication
③R:Relay T:Transistor ④A:AC D:DC ⑤D:DIN rail none:Flush
6   7

TC-Soft

  TC-Pro482 Series Digital Timer/Counter/Tachometer User Guide
    TC-Pro483 Series Digital Timer/Counter/Tachometer User Guide
