A Series Radio Modules

▲ Frequency Control: Crystal
▲ Low power indicator
▲ Operation Range: Up to 100 Meters
▲ Supports Modbus RTU / ASCII
▲ Free PC software“Yotta Utility”
▲ Logic Gate Diagram Function
▲ LED Indicators
▲Wide operation temperature : -20 ~ +75 °C
▲ Dual watchdog timer

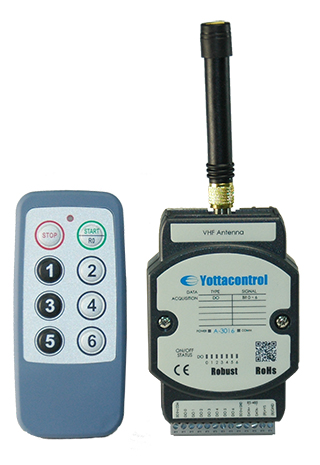

Type A-3016

Transmitter Size

LxWxH: 120x55x25(Unit : mm)

Transmitter Weight

155g

Transmitter Input Power

2 AA size batteries

Receiver Size

LxWxH: 200x77x39(Unit : mm)

Receiver Weight

142g

Receiver Input Power

+10 ~ +30 VDC

Receiver Output  LED

YES

Receiver Speed

1200~115200 bps

Receiver Interface

RS-485

Operation Distance

Up to 100 Meters

Receiver Output Type

Sink (40VDC/200mA/Isolation 3000VDC)

Operation temperature

-20 ~ +75  °C

Watchdog Timer

System m & Comm

Logic Gate Diagram Function Type

11

Logic Gate Diagram Function Rule

128
