2.4GHz Wireless Data Converter

see more

Wireless Data Converter

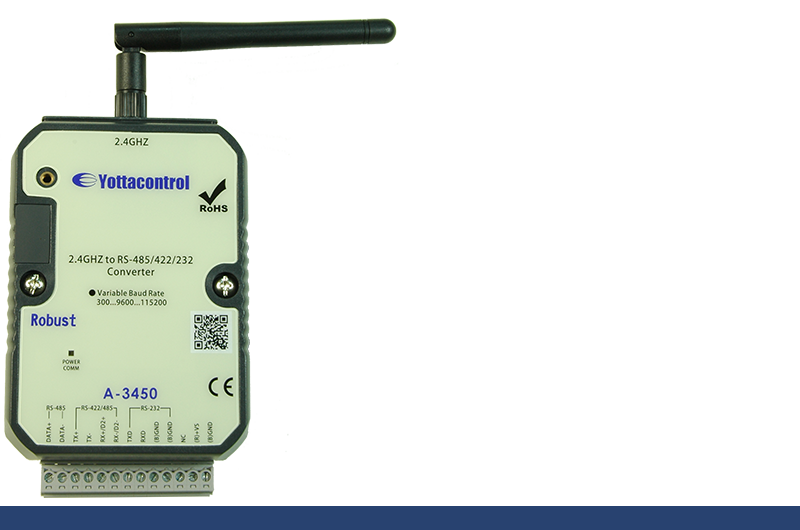

A-3450 Wireless Data Converter

※ Sight distance credible transmission distance is up to 100m
※ Offer byte-oriented transparent data adaptable to various user protocols
※ Can be applied to manifold communication combination methods like point to point, point to multi-point and multi-point to point.
※ Automatically filtrate fake data generated in air, can transmit longer data frames.
※ High efficiency forward error correction channel coding technology, anti-jamming data.
※ 2.4GHz ISM frequency range, need not apply for frequency pint.
※ Equipped with 50 ohm SMA antenna pedestal, offer manifold antenna options.
※ Meanwhile offer RS-232/RS-485/RS-422 level interface
※ Effective speed 300~115200bps.
※ Working temperature is -20°C~+75°C

A-3450 Wireless Data Converter

Wireless Data Converter, link text

A-3450 Wireless Data Converter

Wireless Data Converter, link text

A-3450 Wireless Data Converter

Wireless Data Converter, link text

Collect from Yottacontrol

Products

see more

Operation Voltage: 10~30VDC/24VAC
Supports Max device: Maximum of 256 devices (Without repeater)
Frequency range: 2400 – 2483.5 MHz
Operation temperature: -20°C to +75 °C
Storage temperature: -25 °C to +80 °C
Installation: 35 mm DIN rail or Flush mounting
Connection: Removable 13-pin Terminal Block ( For RS-422 / 485 / 232 )
RF Module's Groups: 0~65535
RF Module's ID:0~65535
RF Module's TX Power:0~6
RF Module's Channel: 0~200
RF Module's Data Rate: 250K
Dimension (W x H x D mm): 76.4*118.2*40.7 mm


Download





see more

Ordering Information



2.4GHz Wireless Data Converter
A-3450: 2.4GHz Wireless ,RS-232, RS-485, RS-422
